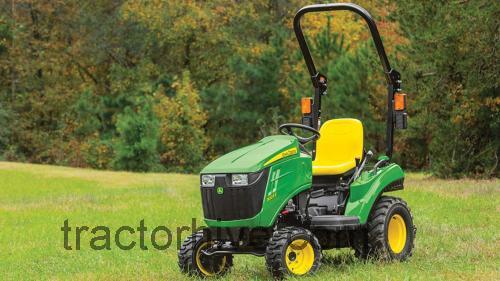

John Deere 1023E Specs, Reviews, and Common Problems
| Engine Specs | |
|---|---|
| Type | diesel |
| Capacity | 1.6l |
| Horsepower | 22.4 hp |
| Torque | 47.7 lb-ft |
| User Manual | John Deere 1023E User Manual |
| Number of cylinders | 3 |
| Cooling system type | liquid-cooled |
| Emission standards compliance | tier 4 |
| Turbocharged or naturally aspirated | naturally aspirated |
| Engine RPM range | 2400 rpm |
| Dimensions | |
| Length | 2937 mm |
| Width | 1194 mm |
| Height | 2286 mm |
| Weight | 705 kg |
| Wheelbase | 1473 mm |
| Ground clearance | 147 mm |
| Turning radius | 2.3 m |
| Performance | |
| Top speed | 24 km/h |
| Parts & Accessories | John Deere 1023E Parts & Accessories |
| Fuel consumption | 3.2 l/hr |
| Fuel tank capacity | 25 l |
| Maximum towing capacity | 590 kg |
| Maximum drawbar pull | 7.5 kn |
| Transmission type | hydrostatic |
| Number of forward and reverse gears | 2-range |
| Differential lock | automatic |
| Axle configuration | 4wd |
| Features | |
| Cabin features | adjustable seat |
| Transmission features | cruise control |
| Tires | 18x8.5-10 4pr front r4, 26x12-12 4pr rear r4 |
| PTO details | standard 540 rpm |
| Lighting | 2 front and 2 rear work lights |
| Safety features | seat belt, rollover protective system |
| Tires & Wheels | John Deere 1023E Tires & Wheels |
| Steering system | power-assisted |
| Climate control | none |
| Electrical Specs | |
| Battery type and capacity | 12v / 500 cca |
| Alternator type and power output | 12v / 40a |
| Electrical system type | alternator-regulated |
| Wiring protection features | fuses |
| Starter system | electric start |
| On-board computer or diagnostic systems | none |
| Hydraulic Specs | |
| Hydraulic system type | open center |
| Pump flow rate | 19.5 l/min |
| Maximum hydraulic pressure | 172.4 bar |
| Lift capacity | 615 kg |
| Control type | manual |
| Filters & Maintenance | John Deere 1023E Filters & Maintenance |
| Hydraulic remotes | one rear remote valve |
| Three-point hitch | category 1 |
| Environmental and Durability | |
| Operating temperature range | -13°C to 43°C |
| Noise level | 83 db |
| Water fording depth | on deck |
| Corrosion resistance | none specified |
| Attachments and Compatibility | |
| Front loader compatibility | h120, d120, 120r, 220r |
| Backhoe compatibility | 260b |
| Compatibility with implements | plows, harrows, mowers |
| Optional equipment | imatch quick hitch, ballast box |
| Connectivity | |
| GPS and navigation system | none |
| Remote monitoring | none |
| Bluetooth and Wi-Fi connectivity | none |
| Compatibility with precision agriculture tools | none |
| Price | |
| MSRP | $14,301 |
| Current market price | $13,500 |
| Financing options | lease and loan terms available |
| Warranty | |
| Duration of warranty | 2 years/120 hours |
| Coverage details | powertrain |
| Extended warranty options | available |
| Maintenance | |
| Service intervals | every 200 hours |
| Parts availability | global |
| Dealer support and service network | extensive |
| Other Relevant Details | |
| Manufacturer's recommended uses | plowing, tilling, hauling |
| Year of manufacture or model year | 2021 |
| Country of origin or manufacturing facilities | USA |
| Market availability | worldwide |
Pros and cons of John Deere 1023E - What You Need to Know
John Deere 1023E User Manual
John Deere 1023E Parts & Accessories
| Pros | Cons |
|---|---|
| Compact size makes it easy to maneuver in tight spaces | Not suitable for large-scale farming operations |
| Comfortable operator station with ergonomic controls | Less horsepower compared to larger tractors |
| Reliable diesel engine with low fuel consumption | Higher price point compared to some competitors |
| Easy-to-use hydrostatic transmission | May not have enough power for heavy-duty tasks |
| Compatible with a wide range of implements and attachments | May not be the best option for steep terrain or rough conditions |
Reviews of John Deere 1023E by Owners - Real User Experiences
| Name | Review |
|---|---|
| Tom | The John Deere 1023E tractor is a great investment for small landowners like myself. It's compact yet powerful, and it handles well on uneven terrain. I've used it for mowing, plowing, and hauling, and it has performed admirably in all tasks. The only downside is that it's a bit pricey, but the quality justifies the cost. |
| Jane | I purchased the John Deere 1023E tractor for my farm, and I must say I'm impressed with its versatility. It's easy to maneuver, and the 4-wheel drive allows me to work in muddy conditions without getting stuck. The loader and backhoe attachments make it a great all-around machine. However, the seat could be more comfortable for long hours of use. |
| Mike | The John Deere 1023E tractor is a reliable workhorse that gets the job done. I've used it for tilling, seeding, and grading, and it has exceeded my expectations in every task. The hydrostatic transmission is smooth and responsive, and the engine has plenty of power to handle tough jobs. The only drawback is that it can be a bit noisy. |
| Sara | I bought the John Deere 1023E tractor for my small farm, and I'm happy with the purchase. It's easy to operate, and the controls are intuitively placed. The compact size allows me to move around narrow spaces without damaging crops or fences. The only downside is that it's not suitable for large-scale farming operations. |
| David | The John Deere 1023E tractor is a solid machine that has proven to be a valuable asset on my property. The 3-point hitch system is easy to use, and the engine is fuel-efficient. I've used it for snow removal, brush clearing, and landscaping, and it has performed well in all tasks. The only issue I've had is with the headlights, which are not very bright. |
Common Issues and Problems with John Deere 1023E
John Deere 1023E Filters & Maintenance
John Deere 1023E Tires & Wheels
- Difficulty starting the engine
- Hydraulic system failures
- Transmission problems, including difficulty shifting gears
- Electrical issues with lights or other components
- Excessive vibration or noise while operating
- Issues with the mower deck, such as uneven cutting or difficulty engaging/disengaging
- Steering problems, such as reduced responsiveness or difficulty turning
- Problems with the fuel system, such as clogged filters or leaks
Common Questions About John Deere 1023E
-
What is the engine type of John Deere 1023E tractor?
The engine type of John Deere 1023E tractor is diesel.
-
What is the maximum towing capacity of John Deere 1023E tractor?
The maximum towing capacity of John Deere 1023E tractor is 590 kg.
-
What is the warranty duration of John Deere 1023E tractor?
The warranty duration of John Deere 1023E tractor is 2 years/120 hours.
-
What are the dimensions of John Deere 1023E tractor?
The dimensions of John Deere 1023E tractor are length: 2937 mm, width: 1194 mm, height: 2286 mm, wheelbase: 1473 mm, ground clearance: 147 mm, and turning radius: 2.3 m.
-
What is the hydraulic system type of John Deere 1023E tractor?
The hydraulic system type of John Deere 1023E tractor is open center.
-
What is the current market price of John Deere 1023E tractor?
The current market price of John Deere 1023E tractor is $13,500.
-
What is the battery type and capacity of John Deere 1023E tractor?
The battery type and capacity of John Deere 1023E tractor is 12v / 500 cca.
-
What are the optional equipment available for John Deere 1023E tractor?
The optional equipment available for John Deere 1023E tractor are imatch quick hitch and ballast box.
