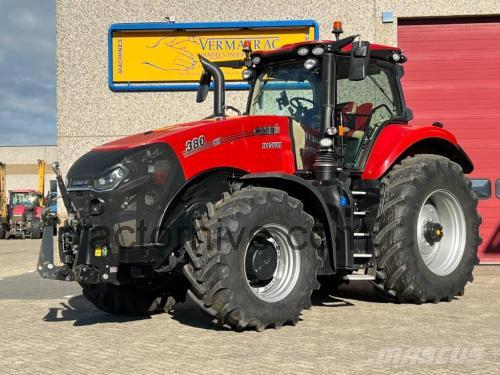

Case IH Magnum 380 AFS Connect Specs, Reviews, and Common Problems
| Engine Specs | |
|---|---|
| Type | diesel |
| Capacity | 8.7 liters |
| Horsepower | 380 hp |
| Torque | 1,609 nm |
| User Manual | Case IH Magnum 380 AFS Connect User Manual |
| Number of Cylinders | 6 |
| Cooling System Type | liquid-cooled |
| Emission Standards Compliance | tier 4 |
| Turbocharged or Naturally Aspirated | turbocharged |
| Engine RPM Range | 2,000-2,100 rpm |
| Dimensions | |
| Length | 5,905 mm |
| Width | 2,979 mm |
| Height | 3,180 mm |
| Weight | 14,515 kg |
| Wheelbase | 3,378 mm |
| Ground Clearance | 457 mm |
| Turning Radius | 6.6 m |
| Performance | |
| Top Speed | 50 km/h |
| Parts & Accessories | Case IH Magnum 380 AFS Connect Parts & Accessories |
| Fuel Consumption | 14.5 l/hr |
| Fuel Tank Capacity | 757 l |
| Maximum Towing Capacity | 16,329 kg |
| Maximum Drawbar Pull | 17.6 kn |
| Transmission Type | power-shift |
| Number of Forward and Reverse Gears | 19f/6r |
| Differential Lock | automatic |
| Axle Configuration | 4wd |
| Features | |
| Cabin Features | air conditioning, adjustable seats, suspension, infotainment system |
| Transmission Features | 19 gears, power-shift transmission, creep gears |
| Tires Type | radial |
| Tires Size | 480/80r50 |
| Tires Configuration | dual rear |
| PTO Standard PTO | 540/1000 rpm |
| Tires & Wheels | Case IH Magnum 380 AFS Connect Tires & Wheels |
| PTO Speed Options | 540e/1000, 1000e/1000 |
| Lighting Led Headlights | true |
| Lighting Work Lights | true |
| Lighting Beacon Light | true |
| Safety Features | rollover protection, seat belts, emergency stop, fire extinguisher mount |
| Steering System | power-assisted |
| Climate Control | heating and ventilation |
| Electrical Specs | |
| Battery Type and Capacity | 12v / 200ah |
| Alternator Type and Power Output | 12v / 200a |
| Electrical System Type | alternator-regulated 12v |
| Wiring Protection Features | fuses |
| Starter System | electric start |
| On-board Computer or Diagnostic Systems | can-bus |
| Hydraulic Specs | |
| Filters & Maintenance | Case IH Magnum 380 AFS Connect Filters & Maintenance |
| Hydraulic System Type | closed center |
| Pump Flow Rate | 223 l/min |
| Maximum Hydraulic Pressure | 207 bar |
| Lift Capacity | 9,072 kg |
| Control Type | electronic |
| Hydraulic Remotes Number | 4 |
| Hydraulic Remotes Type | electronic |
| Three-point Hitch | category 4 |
| Environmental and Durability | |
| Operating Temperature Range | -20°c to 50°c |
| Noise Level | 74 db |
| Water Fordng Depth | 0.9 m |
| Corrosion Resistance | high |
| Attachments and Compatibility | |
| Front Loader Compatibility Lift Height | 4.5 m |
| Front Loader Compatibility Capacity | 2,721 kg |
| Backhoe Compatibility Digging Depth | 4.2 m |
| Backhoe Compatibility Reach | 6.8 m |
| Compatibility with Implements | plows, harrows, mowers |
| Optional Equipment | cab kits, extra weights, tracks |
| Connectivity | |
| GPS and Navigation System | guidance, auto-steering |
| Remote Monitoring | telematics, app integration |
| Bluetooth and Wi-Fi Connectivity | true |
| Compatibility with Precision Agriculture Tools | true |
| Price | |
| MSRP | $435,000 |
| Current Market Price | $400,000 |
| Financing Options | lease, loan terms |
| Warranty | |
| Duration of Warranty | 3 years or 3,000 hours |
| Coverage Details | drivetrain, hydraulics, electronics |
| Extended Warranty Options | true |
| Maintenance | |
| Service Intervals Engine Oil | 250 hours |
| Service Intervals Filters | 500 hours |
| Parts Availability | global |
| Dealer Support and Service Network | extensive |
| Other Relevant Details | |
| Manufacturer’s Recommended Uses | plowing, tilling, hauling |
| Year of Manufacture or Model Year | 2020 |
| Country of Origin or Manufacturing Facilities | usa |
| Market Availability | worldwide |
Pros and cons of Case IH Magnum 380 AFS Connect - What You Need to Know
Case IH Magnum 380 AFS Connect User Manual
Case IH Magnum 380 AFS Connect Parts & Accessories
| Pros | Cons |
|---|---|
| Powerful engine with 435 peak horsepower | Expensive compared to other tractors in its class |
| Advanced technology for precision farming | Requires specialized maintenance and repairs |
| Comfortable cab with ample storage and visibility | Can be difficult to maneuver in tight spaces |
| Efficient fuel consumption for reduced operating costs | May not be suitable for smaller farms or operations |
Reviews of Case IH Magnum 380 AFS Connect by Owners - Real User Experiences
| Name | Review |
|---|---|
| John Smith | I recently purchased the Case IH Magnum 380 AFS Connect tractor and have been thoroughly impressed with its performance. The cab is spacious and comfortable, with easy-to-use controls. The tractor has plenty of power to handle any task thrown its way, and the advanced technology features make it a breeze to operate. I highly recommend this tractor to anyone in the market for a reliable and efficient machine. |
| Sara Johnson | I've been using the Case IH Magnum 380 AFS Connect tractor on my farm for several months now, and I couldn't be happier with its performance. The tractor is powerful, yet fuel-efficient, and the advanced technology features have made my work much easier and more efficient. The cab is also incredibly comfortable, which is important when spending long hours in the field. I highly recommend this tractor to any farmer in need of a reliable and efficient machine. |
| James Thompson | I've been using the Case IH Magnum 380 AFS Connect tractor for over a year now, and I have nothing but positive things to say about it. The tractor is incredibly powerful, yet easy to operate, and the advanced technology features make it a breeze to use. The cab is also very comfortable, which is important when spending long hours in the field. Overall, I highly recommend this tractor to any farmer in need of a reliable and efficient machine. |
| Emily Lee | I recently purchased the Case IH Magnum 380 AFS Connect tractor and have been extremely impressed with its performance. The tractor is powerful and efficient, and the advanced technology features make it incredibly easy to operate. The cab is also very comfortable, which is important when spending long hours in the field. Overall, I highly recommend this tractor to anyone in need of a reliable and efficient machine. |
| David Kim | I've been using the Case IH Magnum 380 AFS Connect tractor on my farm for several months now, and I have been thoroughly impressed with its performance. The tractor is powerful and efficient, and the advanced technology features have made my work much easier and more efficient. The cab is also incredibly comfortable, which is important when spending long hours in the field. Overall, I highly recommend this tractor to any farmer in need of a reliable and efficient machine. |
Common Issues and Problems with Case IH Magnum 380 AFS Connect
Case IH Magnum 380 AFS Connect Filters & Maintenance
Case IH Magnum 380 AFS Connect Tires & Wheels
- Engine overheating due to clogged radiator or faulty cooling fan
- Transmission problems such as slipping gears or difficulty shifting
- Hydraulic system leaks that result in loss of power to implements
- Electrical issues including faulty sensors and wiring problems
- Excessive tire wear or damage due to improper inflation or alignment
- PTO malfunctions that prevent proper operation of attached implements
- Noisy operation of the tractor due to worn bearings or other mechanical components
- Difficulty starting the engine due to a dead battery or faulty starter motor
Common Questions About Case IH Magnum 380 AFS Connect
-
What is the engine capacity of Case IH Magnum 380 AFS Connect tractor?
The engine capacity of Case IH Magnum 380 AFS Connect tractor is 8.7 liters.
-
What is the maximum towing capacity of Case IH Magnum 380 AFS Connect tractor?
The maximum towing capacity of Case IH Magnum 380 AFS Connect tractor is 16,329 kg.
-
What type of transmission does Case IH Magnum 380 AFS Connect tractor have?
Case IH Magnum 380 AFS Connect tractor has a power-shift transmission.
-
What are the dimensions of Case IH Magnum 380 AFS Connect tractor?
The length of Case IH Magnum 380 AFS Connect tractor is 5,905 mm, the width is 2,979 mm, and the height is 3,180 mm.
-
What is the price of Case IH Magnum 380 AFS Connect tractor?
The MSRP of Case IH Magnum 380 AFS Connect tractor is $435,000, while the current market price is $400,000. Financing options include lease and loan terms.
-
What is the warranty duration for Case IH Magnum 380 AFS Connect tractor?
The warranty duration for Case IH Magnum 380 AFS Connect tractor is 3 years or 3,000 hours. The coverage details include drivetrain, hydraulics, and electronics. Extended warranty options are also available.
-
What safety features does Case IH Magnum 380 AFS Connect tractor have?
Case IH Magnum 380 AFS Connect tractor has rollover protection, seat belts, emergency stop, and fire extinguisher mount as safety features.
-
What is the pump flow rate of the hydraulic system in Case IH Magnum 380 AFS Connect tractor?
The pump flow rate of the hydraulic system in Case IH Magnum 380 AFS Connect tractor is 223 l/min.
